| Specification |
| I/O Interface |
| Power |
AC input (100-240 V) |
| Ethernet |
8 Port 10/100M PoE |
| 2 Port 10/100M Ethernet Uplink |
| Performance |
| Switching Capacity |
2Gbps |
| Throughput |
1.488Mpps |
| Packet Buffer |
448K |
| MAC Address |
2K |
| Jumbo Frame |
2Kbytes |
| Transfer Mode |
Store and forward |
| MTBF |
100000 hour |
| Standard |
| Network Protocol |
IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) |
| IEEE802.3x (Flow control) |
| PoE Protocol |
IEEE802.3af (15.4W) |
| IEEE802.3at (30W) |
| Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) |
| EN61000-4-4 (EFT) |
| EN61000-4-5 (Surge) |
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP(≤100m) |
| 100Base-TX: Cat5 or above UTP(≤100m) |
| Protection |
| Security Certificae |
CE、FCC、RoHS |
| Environment |
| Working Environment |
Working Temperature: –10~50°C |
| Storage Temperature: -40~85°C |
| Working Humidity: 10%~90%，non-condensing |
| Storage Temperature: 5%~95%，non-condensing |
| Working Height: Maximum10,000 feet |
| Storage heigh: Maximum 10,000 feet |
| Mechanical |
| Structure Size |
Product Size: 200*118*44mm |
| Package Size: 245*190*60mm |
| Product Net-Weight: 0.6kg |
| Product Gross-Weight: 0.9kg |
| Packing Info |
MEAS: 505*320*400mm |
| Packing Qty: 20 unit |
| Packing weight: 19 KG |
| Power Voltage |
Input Voltage: AC 100-240 V |
| Output Voltage: 52V2.3A |
| Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc |

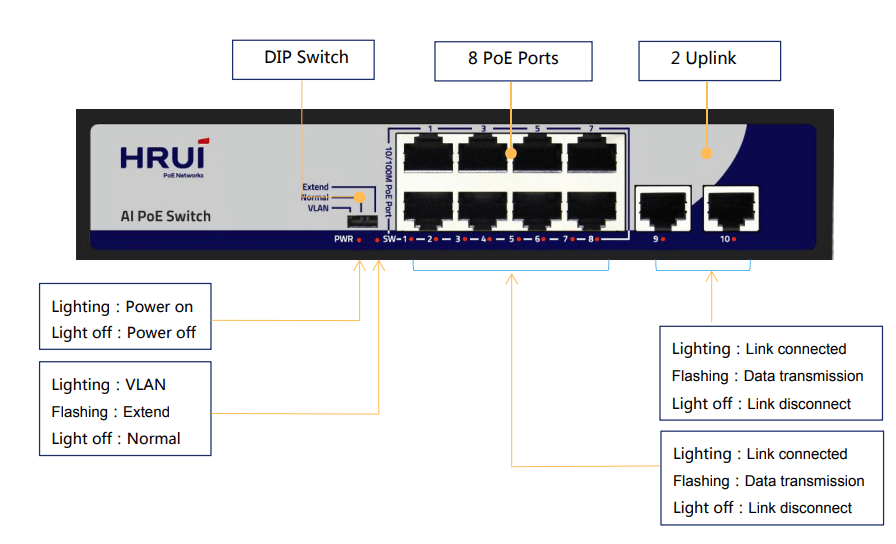

| Indication |
| DIP Switch |
VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on |
| Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/100M adaptive; The port AI mode is closed |
| Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on |
| LED Indicators |
PWR、SW、1-10 Link |
