– یک پورت PoE با سرعت 10/100Mbps
– طراحی بدنه با سطح حفاظت IP65، مناسب برای شرایط سخت محیطی در فضای باز
– پشتیبانی از تأمین برق از راه دور با PoE 24V و تأمین برق محلی با DC 12V
– پشتیبانی از انتقال بی‌سیم WiFi با پروتکل 802.11b/g/n و سرعت 450Mbps
– همراه با آنتن‌های با بهره بالا، امکان انتقال تا فاصله 1 کیلومتر در محیط باز و بدون مانع
– پشتیبانی از روش‌های نصب دیواری و نصب بر روی پایه، با ساختاری ساده
– پشتیبانی حداکثر از ارتباط نقطه به هشت نقطه

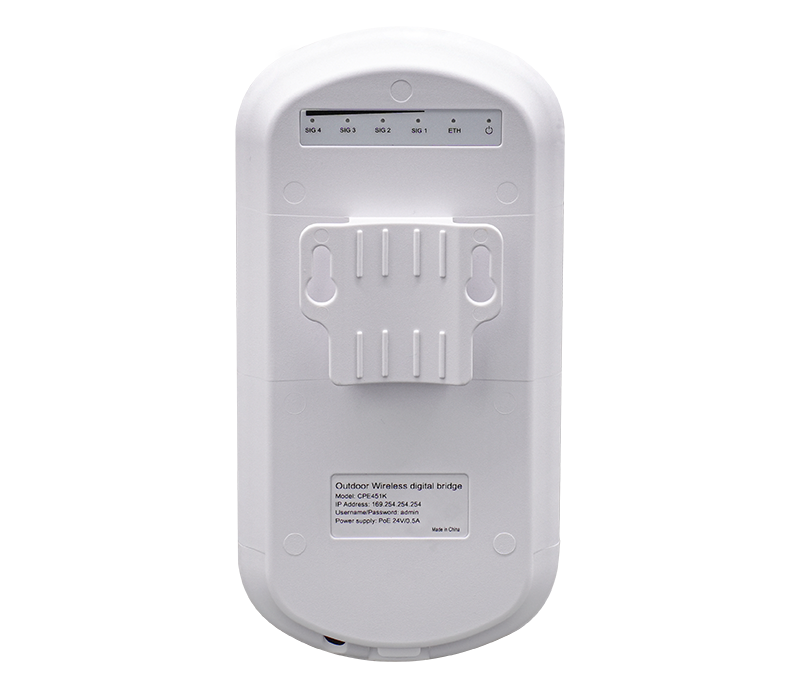

رادیو وایرلس اچ ار یو ای HRUI HR-CPE45A-1 یک جفت
4,150,000 تومان
( آخرین بروزرسانی : 15 اردیبهشت, 1404 )
نقد و بررسی : رادیو وایرلس اچ ار یو ای HRUI HR-CPE45A-1 یک جفت
| Hardware Features & Performance | |
| Model | HR-CPE45A-1 |
| Wireless Technology | 802.11a/n/ac 450Mbps 1T1R technology |
| Interface | LAN 1* 10/100Mbps adaptive RJ45 port |
| Button | Reset to factory/digital composite button, short press to adjust digital tube value, long press for 5 seconds to restore factory settings |
| Indicator Light | PWR power indicator light, ETH RJ45 port status indicator lightSIG1/SIG2/SIG3/SIG4 signal strength indicator light, digital tube |
| Antenna | Built in dual polarized 8dBi directional plate antenna (horizontal lobe angle 65 °, vertical lobe angle 30 °) |
| Power supply | 24V/0.5A PoE remote power supply |
| Structure Information | Product Dimensions :180*90*40mmPackaging Dimensions :210*183*70mm
Product Net Weight:0.15kg Product Gross Weight:0.65kg |
| Packing Information | Carton Dimensions :432*390.5*380mmPacking Quantity: 20pair
Packing Weight: 14.06kg |
| Package Contents | Wireless Digital Bridge*1，24V PoE power adapter * 1, plastic clamp * 2,Ethernet cable * 1, manual (including warranty card)*1 |
| Installation | Pole mounted installation |
| Operating Temperature | -30℃～55℃ |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10%~90%，non condensing |
| Storage Humidity | 5%~95%，non condensing |
| Frequency Range | 5G: UNII-1: 5.15~5.35GHzUNII-2: 5.47~5.725GHz
UNII-3: 5.725~5.825GHz |
| Channel Distribution | 36、40、44、48、52、60、64、149、153、157、161、165 |
| Modulation Mode | 802.11a: OFDM (BPSK, QPSK,16-QAM)802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)
802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) |
| Transmission Speed | 11a maximum 54Mbps, 11n maximum 144Mbps, 11ac maximum 450Mbps |
| Receiving Sensitivity | 11a：≤-86±1.5dBm @6Mbps，≤-69±1.5dBm @54Mbps11n 20MHz：≤-85±1.5dBm@MCS0，≤-67±1.5dBm @MCS7
11n 40MHz：≤-82±1.5dBm @MCS0，≤-64±1.5dBm @MCS7 11ac 20MHz：≤-84±1.5dBm @MCS0，≤-59±1.5dBm @MCS8 11ac 40MHz：≤-82±1.5dBm @MCS0，≤-56±1.5dBm @MCS9 11ac 80MHz：≤-78±1.5dBm @MCS0，≤-52±1.5dBm @MCS9 |
| Transmission Power | 11a: 17dBm±1.5dBm@54Mbps11n(20/40MHz): 15dBm±1.5dBm@MCS7
11ac(40/80MHz): 14dBm±1.5dBm@MCS9 |
| Transmission Distance | 1km |
| Software Features & Performance | |
| Working Mode | Bridge access point, bridge client |
| Networking Method | Point to point, point to many points (within eight points) |
| Management Style | Chinese and English WEB management |
| State | System status, bridge status, interface status |
| Bridge Configuration | Wireless mode: Bridge access point/Bridge clientBridge access point: bridging SSID, bridging password, wireless protocol, wireless bandwidth, wireless channel, wireless power
Bridge client: bridging SSID, encryption method, bridging password, peer MAC address, wireless channel, wireless power |
| Network Settings | Address acquisition method: automatic acquisition/static IPIP address, subnet mask, gateway, DNS1, DNS2 |
| System Management | System debugging, password modification, restart/reset/upgrade |
